    Multicrystalline silicon brick

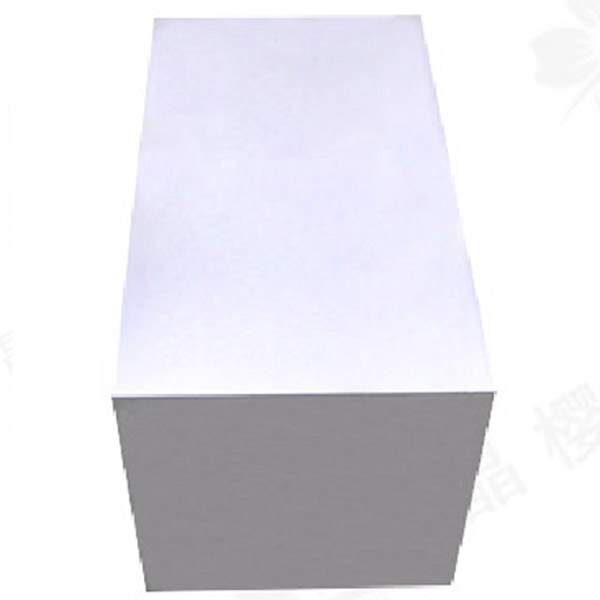

    Multicrystalline silicon brick

    Multicrystalline silicon brick is made by directional silicon solidification.JY makes full uses of the industry's mainstream crystal growth methods,equipped with advanced manufacturing facilities, and furnished with its advantages in independent ingot technology.All these make JY’s multi brick is of low impurities,low defects, and high&stable efficiency. Brick size in 156.75mm and 157mm are the mainstream products currently.Meanwhile, we can produce various non-conventional size according to custom requirements.

    Technical Parameters

    ProjectTechnical Parameters
    Side length156.75±0.25mm157±0.25mm157.75±0.25mm
    diagonal220.2±0.5mm220.5±1mm221.7±1mm
    Squareness90°±0.25°
    lengthAverage length ≥220mm; 60mm ≤ short rod ≤ 100mm, short rod ratio ≤ 10%; length ≥ 250mm, ratio ≥ 60%
    ChippingCollapse of each end face ≤ 2mm, middle collapse of ≤ 5mm
    Hypotenuse (polycrystalline)1-2mm
    Bevel≤1.5mm
    Surface QualityNo damage on the surface
    Conductive typeP
    Resistivity1-3Ω·cm
    Minority life≥6μs (first 3, last 3)
    oxygen concentration≤5*1017atoms/cm3
    carbon concentration≤7*1017atoms/cm3
    ImpuritiesDiameter ≤ 2mm, number of ≤ 6 pieces. (Flaw detection after flat grinding)
    Growth methodDSS
    DopingB Boron
