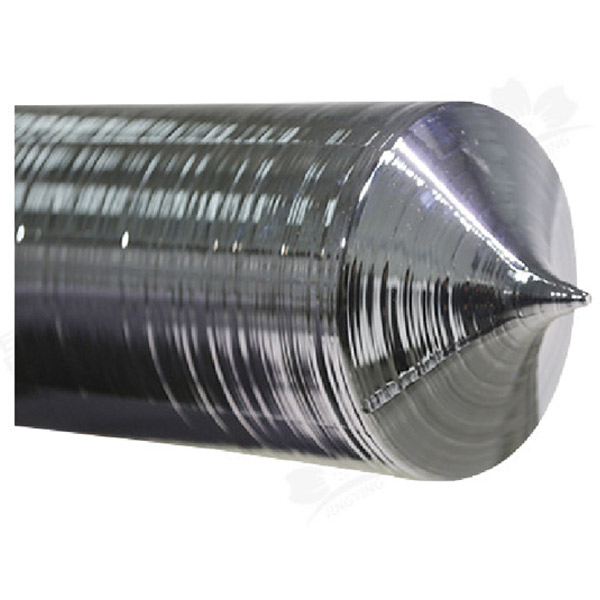

Monocrystalline silicon brick is a crystal with substantially complete lattice structure. Which is the raw material for producing monocrystalline silicon wafers.Different directions have different properties.Mono brick is a good semi-conducting material. The mono brick is a rod-shaped single crystal silicon grown from the melt by a Czochralski method or a suspension zone melting method in industrial production. Its main indicators are minority life, oxygen concentration and ect.
| Project | Technical Parameters |
|---|---|
| Dislocation density | <500at0ms/cm2 |
| Side length | 156.75±0.25mm |
| Diagonal (single crystal) | 210±0.25mm |
| Squareness | 90°±0.3° |
| Direction | <100>±3° |
| Roughness | Ra≤1.5um |
| Arc width deviation (single crystal) | 12±0.5mm |
| Bevel | ≤1.5mm |
| Conductive type | P |
| Resistivity | 1-3Ω·cm |
| Minority life | >3μs(Naked test),>15μs(After passivation) |
| oxygen concentration | ≤1*1018atoms/cm3 |
| carbon concentration | ≤0.5*1017atoms/cm3 |
| Growth method | CZ Czochralski |
| Doping | B boron |
